# Design Details

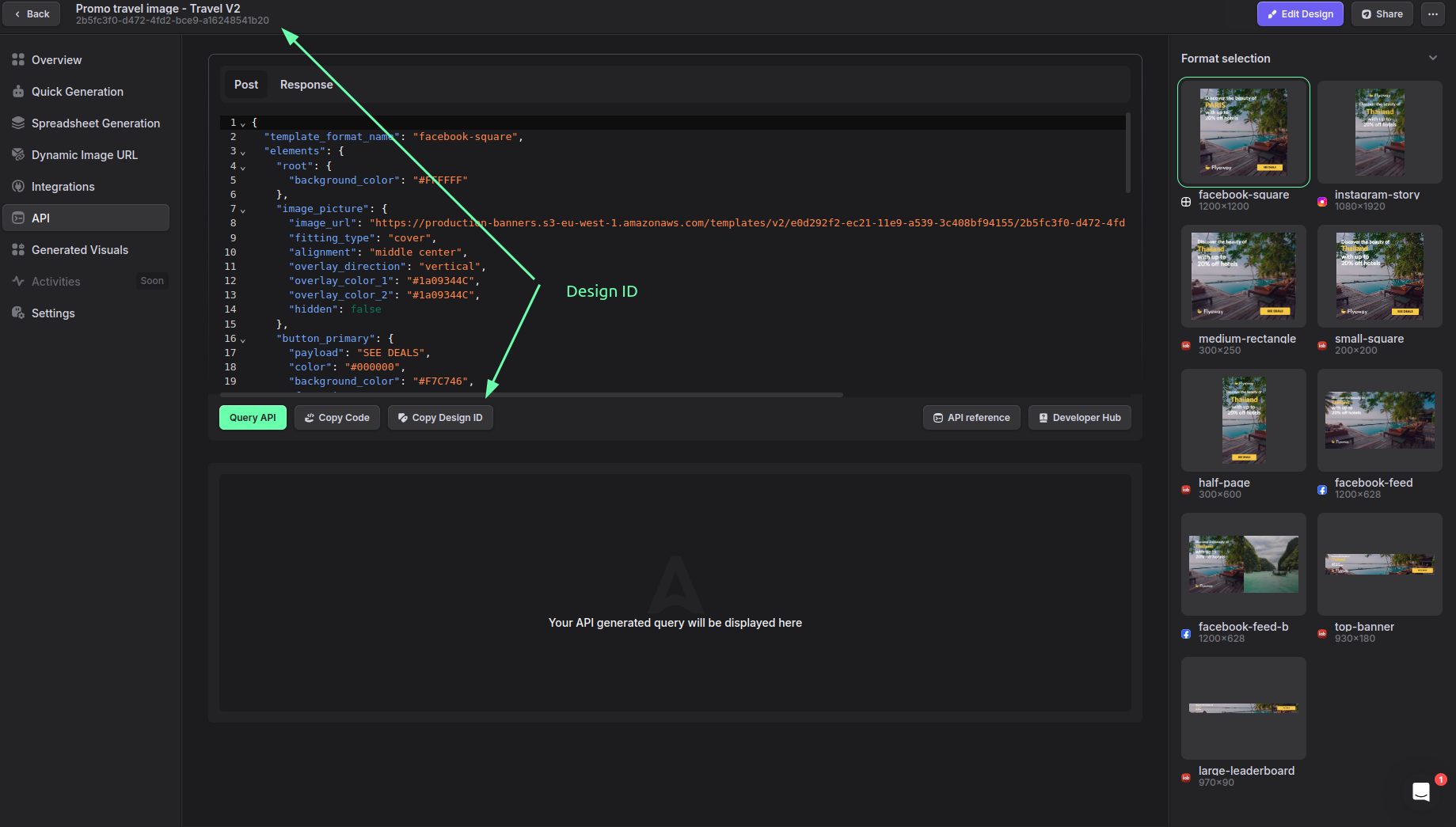

<figure><img src="https://3568284716-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FHvY8mOYKzvcoxVpCu4FE%2Fuploads%2FLRgZpmbnmc8kjryX9ZUK%2Fimage.png?alt=media&#x26;token=b1d4c506-974b-4fdf-9270-533fd6a7ed27" alt=""><figcaption></figcaption></figure>

When you retrieve a design's information, you'll receive a complete specification that includes:

#### Core Identifiers

* Unique design ID for API reference

#### Format Definitions

* List of all output formats configured for the design
* Each format has a unique name & a unique uid within its parent design

#### Layer Configuration

* Complete inventory of all layers
* Supports 9 distinct layer types

#### Property Mappings

* Detailed property values for each layer
* Properties are format-specific and can include:
  * Color values
  * Content payloads
  * Image URLs
  * Other format-specific attributes

**Additional information about layers:**

* `mandatory` (boolean):

  * `true` – The layer **must** be explicitly provided in API requests. Omitting it will result in a generation error. It **must differ from the default value** defined in the design.
  * `false` – The layer is optional during API generation.&#x20;

  Use this field to programmatically determine which layers require values before submitting a generation request.&#x20;

## Get Design details

> Retrieve the details of a design (general information, formats, elements & properties).<br>

```json
{"openapi":"3.0.3","info":{"title":"API Reference - Abyssale","version":"0.0.1"},"tags":[{"name":"Designs","description":"A design is a layout including at least:\n- one format (dimension, i.e. Facebook feed 1200x628 or IAB 300x250)\n- one element (text, button, image, shape...)\n\nAll elements have their own properties that can be customized (color, text payload, image...).\n\nOnce designed, all properties of the design will act as a reference for subsequent image generation. Obviously, those properties can be overridden by sending new parameters in the generation API call.\n\nAbyssale provides a list of free template designs in the Template Library page. Feel free to use one to start designing your design instead of doing it from scratch.\n\n**All of your designs are listed in the different project pages, only those are accessible via API.**\n"}],"servers":[{"url":"https://api.abyssale.com","description":"Main Production Server"}],"security":[{"api_key":[]}],"components":{"securitySchemes":{"api_key":{"description":"All of your Abyssale requests must contain a `x-api-key header` with your API Key.","type":"apiKey","name":"x-api-key","in":"header"}},"schemas":{"Design":{"type":"object","properties":{"id":{"type":"string","description":"Unique identifier (UUID) of the design."},"name":{"type":"string","description":"Name of the design."},"type":{"type":"string","enum":["static","animated","printer","printer_multipage"],"description":"Type of the design"},"created_at":{"type":"integer","description":"Timestamp of when the design has been created."},"updated_at":{"type":"integer","description":"Timestamp of when the design has been updated for the last time."},"category_name":{"type":"string","nullable":true,"description":"Design Category"}},"required":["id","name","created_at","updated_at"]},"DesignFormat":{"type":"object","properties":{"id":{"type":"string","description":"Unique identifier (name) of the format."},"uid":{"type":"string","description":"Unique UUID of the format"},"width":{"type":"number","description":"Width of the format"},"height":{"type":"number","description":"Height of the format"},"preview_url":{"type":"string","format":"uri","description":"Preview Image URL of the format"},"dynamic_image_url":{"type":"string","format":"uri","description":"URL of the existing dynamic image for this format."}},"required":["id","width","height"]},"DesignElement":{"type":"object","properties":{"name":{"type":"string","description":"Layer name (`root` is a special element that allows to customize the image background color.)"},"type":{"type":"string","enum":["container","text","button","image","logo","shape","illustration","rating","qrcode","chart"],"description":"Layer type"},"attributes":{"type":"array","description":"List of all attributes","items":{"type":"object","properties":{"id":{"type":"string","description":"The attribute name"},"help":{"type":"string","description":"An helper to understand what is this attribute"},"values":{"type":"object","additionalProperties":{"type":"string","description":"The value of the attribute related to a format."}}}},"required":["id","help","values"]}},"required":["name","type","attributes"]}}},"paths":{"/designs/{designId}":{"get":{"summary":"Get Design details","description":"Retrieve the details of a design (general information, formats, elements & properties).\n","tags":["Designs"],"parameters":[{"in":"path","name":"designId","schema":{"type":"string","format":"uuid"},"required":true,"description":"Unique identifier (UUID) of the design"}],"responses":{"200":{"description":"Ok","content":{"application/json":{"schema":{"allOf":[{"$ref":"#/components/schemas/Design"},{"type":"object","properties":{"formats":{"type":"array","description":"The list of formats available in the design.\n\nThe id property can be used to specify the format you would like to generate in the generation API call.\n","items":{"$ref":"#/components/schemas/DesignFormat"}},"elements":{"type":"array","description":"The list of all elements (& customizable properties) contained in the design.\n\n`name` is the layer name (root is a special element that allows to customize the image background color.)\n\n`attributes` contains the list of all customizable properties:\n- `id`: The attribute ID\n- `values`: the related value for this attribute in each format (if defined)\n","items":{"$ref":"#/components/schemas/DesignElement"}},"variables":{"type":"object","description":"Variables used within the text layers of the design.\nKeys represent variable names (without braces), and values\nrepresent the placeholder format in the design (e.g. \"{name}\").\n","additionalProperties":{"type":"string"}}}}]}}}},"404":{"description":"Design Not found"}}}}}}
```

{% hint style="info" %}
[The full api reference can be found here](https://api-reference.abyssale.com/#tag/Templates/paths/~1templates~1{templateId}/get)
{% endhint %}

{% hint style="info" %}
Advanced properties can be retrieved by using the `?i=advanced` query URL parameter.
{% endhint %}

### Sample response

```json
{
    "template_id": "7dc0229b-cc0e-4fe5-971d-325164480887",
    "name": "Abyssale demo - FB Feed",
    "type": "static",
    "created_at": 1681215684,
    "updated_at": 1681217794,
    "category_name": "Abyssale Demo",
    "formats": [
        {
            "id": "medium-rectangle",
            "uid": "9b57d65e-eb2c-4a74-a51e-4482917c248a",
            "width": 300,
            "height": 250,
            "preview_url": "https://public-example-link.com/preview/87f7f83b-894f-4900-abe2-3e0e769b12d7.png"
        },
        {
            "id": "wide-skyscraper",
            "uid": "088afbb8-bace-4f17-82e4-d30fc6719f4d",
            "width": 160,
            "height": 600,
            "preview_url": "https://public-example-link.com/preview/87f7f83b-894f-4900-abe2-3e0e769b12d7-wide-skyscraper.png"
        }
    ],
    "elements": [
        {
            "name": "root",
            "type": "container",
            "settings": {
                "is_mandatory": false
            },
            "attributes": [
                {
                    "id": "background_color",
                    "help": "6 digits hexadecimal background color of the banner (i.e. #F3F3F3)",
                    "values": {
                        "medium-rectangle": "#ffffff",
                        "wide-skyscraper": "#c3bfbf"
                    }
                }
            ],
            "layout": {
                "medium-rectangle": {
                    "x": 0,
                    "y": 0,
                    "width": 300,
                    "height": 250
                },
                "wide-skyscraper": {
                    "x": 0,
                    "y": 0,
                    "width": 160,
                    "height": 600
                }
            }
        },
        {
            "name": "tb-text_0",
            "type": "text",
            "settings": {
                "is_mandatory": false
            },
            "attributes": [
                {
                    "id": "payload",
                    "help": "Text content (i.e. Lorem ipsum)",
                    "values": {
                        "medium-rectangle": "Lorem Ipsum",
                        "wide-skyscraper": "Test"
                    }
                },
                {
                    "id": "color",
                    "help": "6 or 8 digits hexadecimal color of the text (i.e. #EAEAEA)",
                    "values": {
                        "medium-rectangle": "#000000",
                        "wide-skyscraper": "#000000",
                    }
                }
            ],
            "layout": {
                "medium-rectangle": {
                    "x": 20,
                    "y": 40,
                    "width": 200,
                    "height": 50
                },
                "wide-skyscraper": {
                    "x": 10,
                    "y": 20,
                    "width": 100,
                    "height": 100
                }
            }
        },
    ]
}
```

This sample represents the details of a design (ID: **7dc0229b-cc0e-4fe5-971d-325164480887)**, which contains:

* 2 formats: **medium-rectangle** and **wide-skyscraper.** *Those names can be used in the image generation endpoints to define which formats to create.*
* 2 elements:&#x20;
  * **root** (type: container)
    * The root property is always available and corresponds to the root format container.
    * It contains a single `background_color` attribute:
      * with a `#ffffff` value on the **medium-rectangle** format
      * with a `#c3bfbf` value on the **wide-skyscraper** format
  * **tb-text\_0** (type: text). It contains 2 attributes:
    * `payload`: The text content.&#x20;
      * `Lorem Ipsum` on the **medium-rectangle** format
      * `Test` on the **wide-skyscraper** format
    * `color`: The text color.
      * `#000000` for both formats

### For type [printer multi pages ](https://developers.abyssale.com/rest-api/generation/asynchronous-generation/generate-multi-page-pdf-for-printing), you have to use the same logic but with all the elements per pages
