Generate Single Image

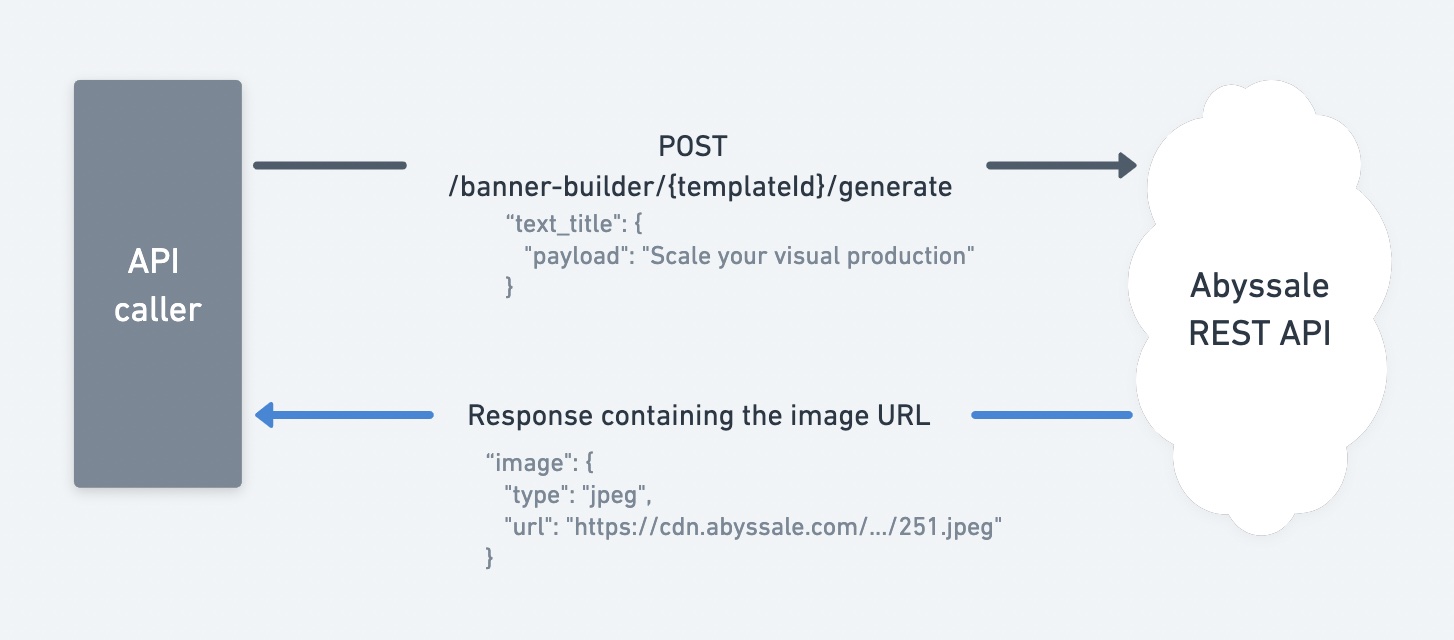

The synchronous generation endpoint generates one image per API call and returns the result immediately in the response body. Use this when you need a single asset on demand and can wait for the response (typically well under a second; hard-capped at 10 s).

For bulk generation across multiple formats, use the asynchronous endpoint instead.

Endpoint

POST/banner-builder/{designId}/generateAPI Reference

Generation characteristics

Supported Design Type: Static
Response: Synchronous
Generates a single asset based on provided customization parameters

Bounded at 10 seconds

The rendering budget is hard-capped at 10 s: the call either returns the finished file within that window or fails with 500 internal_server_error. Typical renders take tens of milliseconds — only heavy source images with slow transformations approach the cap. If a design keeps hitting it, generate it asynchronously instead.

AI features on this endpoint

The 10-second cap decides which AI features belong here.

text_to_image — not accepted. An AI generation takes far longer than the budget, so it is not part of this endpoint's contract; sending it answers 400 invalid_payload. Generate asynchronously instead.
remove_bg — deprecated here. It works and existing integrations keep working, but it adds an AI round-trip before the render, so a large or slow source image can push the call past the cap and return 500 internal_server_error instead of your asset. Remove backgrounds asynchronously.
auto_focus — fully supported, no caveat. It runs on Abyssale's own detection model and is fast enough that it does not put the budget at risk.

Output file types

Supported formats: JPEG, PNG, WEBP, AVIF, Web PDF

Override the default with the image_file_type parameter: png, jpeg, webp, avif, or pdf (auto is also accepted and behaves exactly like omitting the field). pdf (Web PDF) is plan-dependent — a plan without it answers 429 with "Web PDF is not included in your plan".

File type determination

By default, file type is selected automatically based on background transparency:

Transparent background → PNG
Opaque background → JPEG

JPEG has no transparency

When generating a JPEG with transparent elements, those areas will be filled with black. JPEG does not support transparency.

Sample request

Replace {YOUR-API-KEY} and {designId} before running.

cURLNode.jsPython

bash

curl -X POST \
  -H "x-api-key: {YOUR-API-KEY}" \
  -H "Content-Type: application/json" \
  -d '{
    "template_format_name": "main-crisp",
    "elements": {
      "image": {
        "image_url": "https://mycompany.com/image.jpeg",
        "fitting_type": "cover",
        "alignment": "middle center"
      },
      "text_title": {
        "payload": "Send best wishes to your lovelies with little easter gifts!",
        "color": "#FFFFFF",
        "font_size": 48,
        "font_weight": 700,
        "line_height": 120,
        "alignment": "top left"
      }
    }
  }' \
  https://api.abyssale.com/banner-builder/{designId}/generate

javascript

import abyssale from '@abyssale/sdk';
// Set ABYSSALE_API_KEY env var before running

const { data, error } = await abyssale.generateImage('{designId}', {
  template_format_name: "main-crisp",
  elements: {
    image: {
      image_url: "https://mycompany.com/image.jpeg",
      fitting_type: "cover",
      alignment: "middle center"
    },
    text_title: {
      payload: "Send best wishes to your lovelies with little easter gifts!",
      color: "#FFFFFF",
      font_size: 48,
      font_weight: 700,
      line_height: 120,
      alignment: "top left"
    }
  }
});

if (error) console.error(error);
else console.log(data.file.cdn_url);

python

from abyssale import Abyssale
# Set ABYSSALE_API_KEY env var before running

with Abyssale() as client:
    banner = client.generate_image("{designId}", {
        "template_format_name": "main-crisp",
        "elements": {
            "image": {
                "image_url": "https://mycompany.com/image.jpeg",
                "fitting_type": "cover",
                "alignment": "middle center",
            },
            "text_title": {
                "payload": "Send best wishes to your lovelies with little easter gifts!",
                "color": "#FFFFFF",
                "font_size": 48,
                "font_weight": 700,
                "line_height": 120,
                "alignment": "top left",
            },
        },
    })

print(banner.file.cdn_url)

API Reference

Path parameters

Parameter	Type	Required	Description
`designId`	`string (uuid)`	Yes	Unique identifier of the design to generate from.

Request body

Field	Type	Required	Description
`elements`	`object`	No	Element overrides keyed by layer name. Every value must be an object (`{"title": {"payload": "Hi"}}` — a bare string value answers `400 invalid_payload`; this strictness is synchronous-only). See Element Properties. Omit to render the design's saved default content.
`template_format_name`	`string`	No	Format ID to generate (e.g. `"facebook-post"`). When omitted, the design's first format is generated.
`image_file_type`	`string`	No	Output file type: `"png"`, `"jpeg"`, `"webp"`, `"avif"`, `"pdf"` (`"auto"` ≡ omitted). When omitted: `jpeg`, or `png` when the format's background color is transparent.
`file_compression_level`	`integer`	No	Output quality, 1–100 — `100` is the best quality (least compression), `1` the smallest file. Despite the name, higher = better.
`original_visual_id`	`string (uuid)`	No	Regenerate an existing visual in place, keeping its share URL — see Visual Versioning. An unknown or unrelated visual answers `404` (`visual_not_found`, `not_related_to_same_template` or `not_related_to_same_format`).

Sample response

json

{
  "id": "5978e8d9-ab34-4735-a2cb-fe95c2c56251",
  "version": 1,
  "sharing_id": "5fcec999-2bfb-4dd7-ba38-2d9e16c49149",
  "file": {
    "type": "jpeg",
    "url": "https://production-banners.s3.eu-west-1.amazonaws.com/e0d292f2-ec21-11e9-a539-3c408bf94155/996739f4-b563-428a-a6e8-dd3cb8bd03d4.jpeg",
    "cdn_url": "https://cdn.abyssale.com/e0d292f2-ec21-11e9-a539-3c408bf94155/996739f4-b563-428a-a6e8-dd3cb8bd03d4.jpeg",
    "filename": "996739f4-b563-428a-a6e8-dd3cb8bd03d4.jpeg"
  },
  "format": {
    "id": "facebook-feed",
    "width": 1200,
    "height": 628,
    "unit": "px"
  },
  "template": {
    "id": "46d22c62-d134-44d3-a040-138e4ea9ea08",
    "name": "Summer campaign — FB feed",
    "created_at": 1749827107,
    "updated_at": 1749827107
  },
  "image": {
    "type": "jpeg",
    "url": "https://production-banners.s3.eu-west-1.amazonaws.com/e0d292f2-ec21-11e9-a539-3c408bf94155/996739f4-b563-428a-a6e8-dd3cb8bd03d4.jpeg"
  }
}

Response fields

Field	Always	Description
`id`	✓	The generated visual's UUID.
`version`	✓	Visual version — increments when regenerated via `original_visual_id`.
`sharing_id`	✓	Stable sharing identifier — survives re-versioning.
`file`	✓	`{type, url, cdn_url, filename}`. For HTML5 output (async only) `type` is `zip`, `cdn_url` is absent and a `fallback_image_url` (backup JPEG) is added.
`format`	✓	`{id, width, height, unit}` — `unit` is `px`, or `mm`/`in` on print designs.
`template`	✓	The design's `{id, name, created_at, updated_at}`.
`project`	when the design has one	`{id, name, created_at_ts}`.
`image`	✓	Deprecated — same as `file.type`/`file.url`; kept for existing clients.
`edit_url` / `view_url`	conditional	Platform URLs, present only for visuals bookmarked or downloaded in the platform — API-generated visuals usually don't carry them.
`visual_status`	conditional	`{status, status_updated_at_ts, reason?, content_to_replace?, content_to_hide?}` when the visual carries a review status. The last two carry reviewer feedback — content asked to be replaced or hidden.

Errors

Status	`id`	When
`400`	`invalid_payload`	Validation failure — flat `errors: [{path, code, message}]` array.
`400`	`template_not_static`	The design is `animated`/`printer`/`printer_multipage` — use the async endpoint.
`400`	`cannot_build_banner`	The render engine rejected an element (e.g. text cannot fit), and the fallback `id` for any other engine rejection — every error carries an `id`. See Errors.
`401`	`api_access_denied`	Your plan does not include API access.
`404`	`template_not_found`	Unknown design UUID (or a design belonging to another workspace).
`404`	`visual_not_found` / `not_related_to_same_template` / `not_related_to_same_format`	Bad `original_visual_id`.
`429`	`rate_limit_exceeded`	Out of credits, the global 10 req/s ceiling, or a plan restriction (e.g. Web PDF).
`429`	`request_rate_limited`	Too many requests for this endpoint's tier. Never the same `id` as the case above.
`500`	`internal_server_error`	Generation failed or exceeded the 10 s budget.

Element Properties — every overridable property per layer type
Visual Versioning — regenerate under the same share URL
Asynchronous Generation — batches, video/GIF/HTML5/print
Errors — the full error catalogue
Node.js SDK · Python SDK — every method, config, retries and the polling helpers
