Generate Multi-Format PDFs for Printing ​

Asynchronously generate print-ready PDFs across multiple formats from a single printer design. Each PDF is exported with CMYK color space support and bleed settings configured in your design — ready to send directly to a print supplier.

Each format produces its own PDF file. When generation completes, a NEW_BANNER_BATCH event is sent to your callback_url carrying a banners array with one entry per format, each with its own file.url. The files are not bundled into a ZIP — a ZIP is only ever produced for HTML5 banners.

This is for a printer design, whose formats are separate documents. For a printer_multipage design — one document with several pages — use Generate Multi-Page PDF instead.

Plan requirement

This feature is available from the Suite plan.

Colors accept hex or CMYK

Colors you override at generation time — root.background_color and element *_color fields — accept both hex (#RRGGBB / #RRGGBBAA) and CMYK (cmyk(C,M,Y,K) / cmyka(C,M,Y,K,A)) tokens on print designs. The backend converts them to the design's color profile at render time. (Print imports store CMYK too, converting a solid hex for you — see Print Imports → Colors.)

Endpoint ​

POST/async/banner-builder/{designId}/generateAPI Reference

Generation characteristics ​

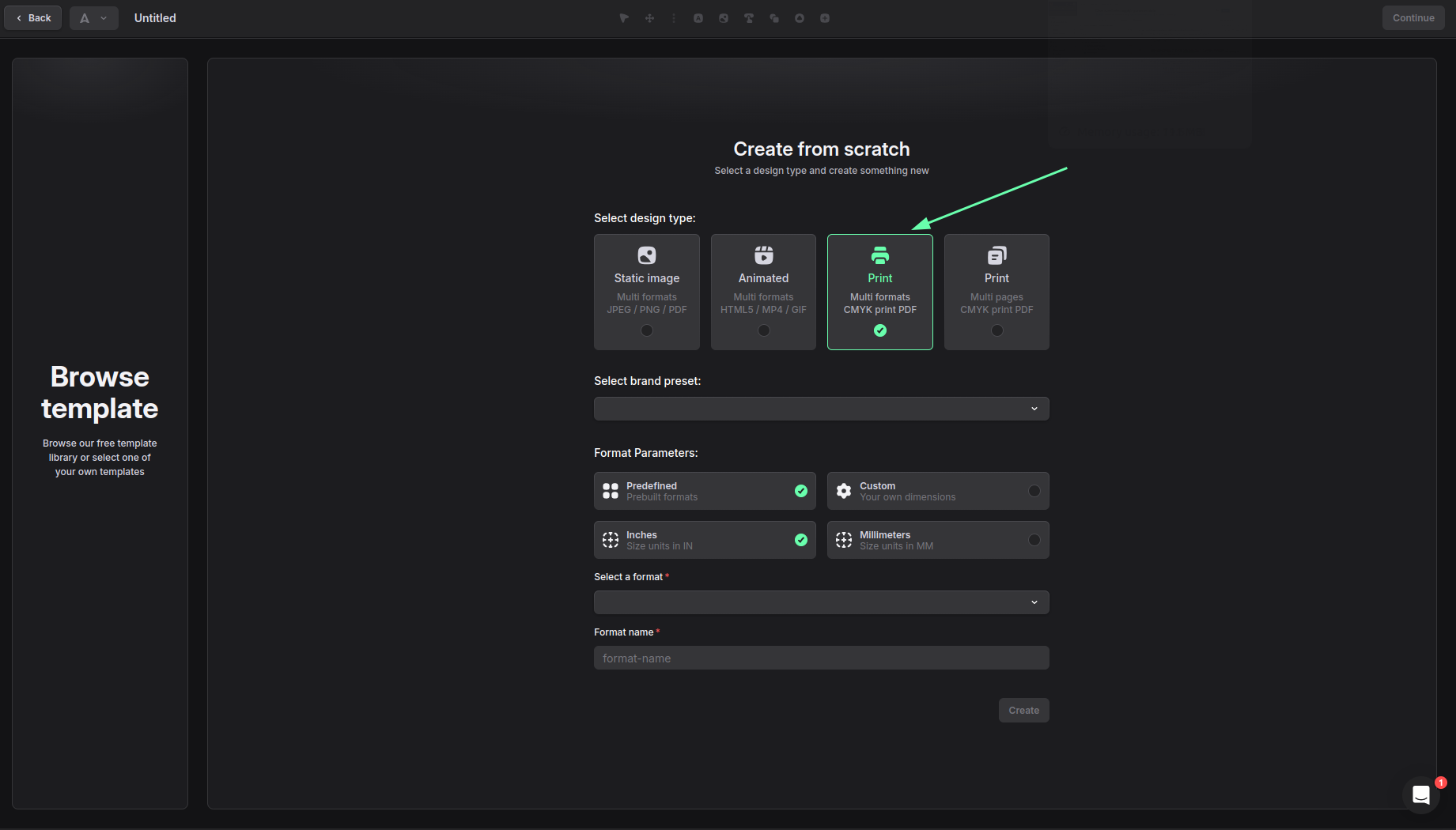

printer design type

  • Supported Design Type: printer
  • Response: Asynchronous
  • Output: Single-page printable PDF per format
  • Retrieval methods: Webhooks, Polling

Output customization ​

Use the print property to customize the PDF output:

Display crop marks ​

  • Default: the value configured in the builder
  • Type: Boolean

Color profiles ​

UUIDDescription
be2ab219-8fe4-4d85-91ba-65bdc9ddaf01CMYK — ISO Coated v2 (ECI)
03738f37-5b6f-4be9-9100-706b1711f9ddCMYK — ISO Coated v2 (ECI) 300%
e0c86a8a-050c-41f1-885a-0f74b9baac50CMYK — ISO Uncoated
0e0355e6-2931-4c83-92f2-64db9f5ddffcCMYK — US Web Coated (SWOP 2006 5v2)
db3c123e-1127-11ef-b77e-f93002785645RGB — No color profile
fac91df8-1155-11ef-b77e-f93002785645CMYK — ISO Newspaper26 v4

The color_profile value must be a UUID — the built-ins above, or a custom profile from your workspace.

json
{
  "print": {
    "display_crop_marks": true,
    "color_profile": "e0c86a8a-050c-41f1-885a-0f74b9baac50"
  }
}

Request body fields ​

All body fields are optional.

FieldTypeRequiredDescription
elementsobjectNoDictionary of element overrides keyed by layer name. See Element Properties. Omit to render the design's saved default content.
template_format_namesarray<string>NoFormat IDs to generate. Omit to generate every format of the design. An entry that doesn't exist on the design answers 404 with id: format_not_found.
callback_urlstring (url)NoWebhook URL notified when the batch completes. Omit to retrieve results by polling.
image_file_typestringNoPrint designs always produce "pdf" — omit it, or set "pdf" explicitly (anything else is 400 invalid_filetype).
file_compression_levelintegerNoOutput quality, 1–100 — 100 is the best quality.
printobjectNoPrint output options: color_profile (UUID — see below), display_crop_marks (boolean, defaults to the builder value).
original_visual_idstring (uuid)NoRegenerate an existing visual in place — see Visual Versioning. Must target exactly one format.

Sample request ​

Replace {YOUR-API-KEY} and {designId} before running.

bash
curl -X POST \
  -H "x-api-key: {YOUR-API-KEY}" \
  -H "Content-Type: application/json" \
  -d '{
    "callback_url": "https://webhook.mycompany.com/pdfs",
    "template_format_names": ["postcard", "tabloid-vertical"],
    "elements": {
      "root": { "background_color": "cmyk(0,0,0,0)" },
      "text_0": {
        "payload": "Lorem ipsum",
        "color": "cmyka(0,0,0,100,100)",
        "font_size": 24,
        "font_weight": 400,
        "line_height": 130,
        "alignment": "top left"
      }
    }
  }' \
  https://api.abyssale.com/async/banner-builder/{designId}/generate

Sample response ​

json
{ "generation_request_id": "166e1852-dc97-43e3-a5f2-142076452c74" }
