Synchronous generation

Endpoint

POST /banner-builder/{design_id}/generate

Key Characteristics

• Immediate asset creation

• Single asset generation

• Supports on static design

• Instant response with asset URL

Generation Process

1. Send design ID and customization parameters

2. Receive immediate response

3. Asset generated and URL provided

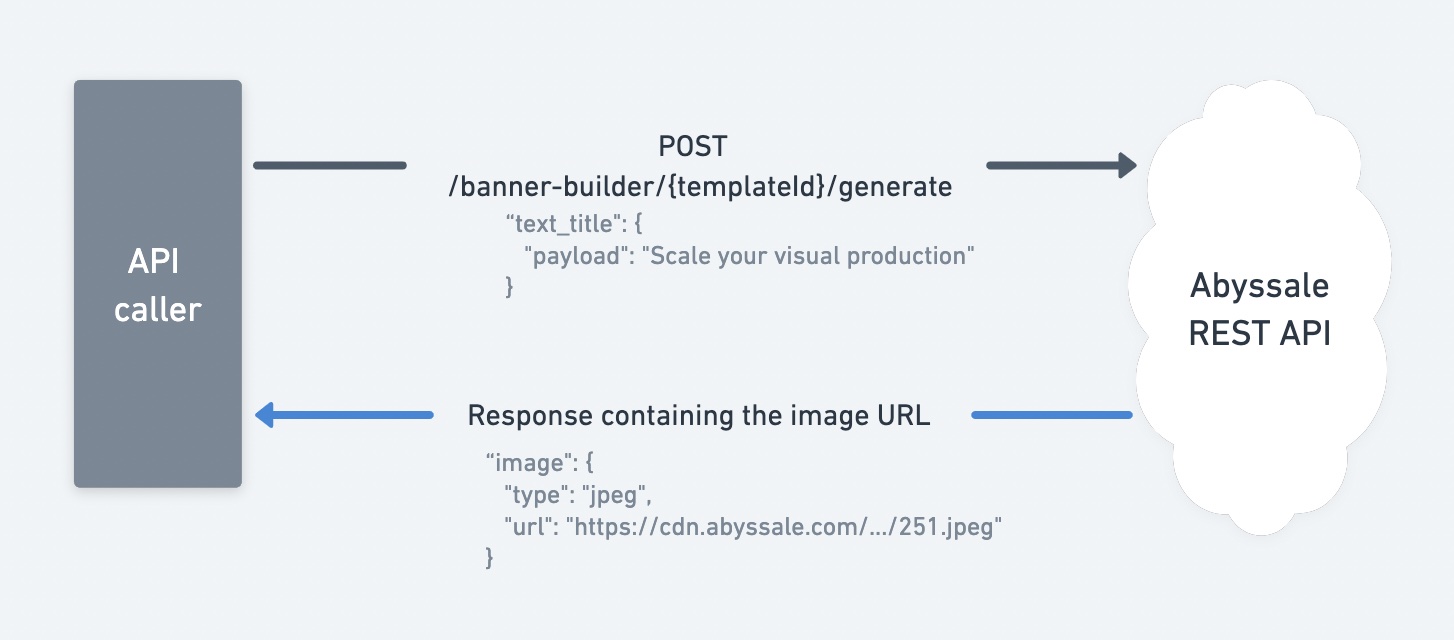

Diagram

API Documentation

Generate image

POSThttps://api.abyssale.com/banner-builder/{templateId}/generate

Authorization

api_key

Path parameters

templateId*string (uuid)

Unique identifier (UUID) of the template

Body

application/json

elements*Elements (object)

A dictionary containing all elements with properties you would like to override form the default template (keys correspond to layer names)

template_format_namestring

Corresponds to the format ID you would like to generate (only mandatory when your template contains several formats).

Example: "facebook-post"

file_compression_levelinteger

Percentage of compression applied.

Example: 80

Response

200

Ok

Body

application/json

id*string (uuid)

Example: "64238d01-d402-474b-8c2d-fbc957e9d290"

fileFile (object)

formatFormat (object)

templateTemplate (object)

Request

JavaScriptCurlPython

const response = await fetch('https://api.abyssale.com/banner-builder/{templateId}/generate', {
    method: 'POST',
    headers: {
      "Content-Type": "application/json"
    },
    body: JSON.stringify({}),
});
const data = await response.json();

Response

200

{
  "id": "64238d01-d402-474b-8c2d-fbc957e9d290",
  "file": {
    "type": "jpeg",
    "url": "https://production-banners.s3.eu-west-1.amazonaws.com/demo/996739f4-b563-428a-a6e8-ec3cb8bd03d4.jpeg",
    "cdn_url": "https://cdn.abyssale.com/demo/996739f4-b563-428a-a6e8-ec3cb8bd03d4.jpeg",
    "filename": "996739f4-b563-428a-a6e8-ec3cb8bd03d4.jpeg"
  },
  "format": {
    "id": "facebook-post",
    "width": 1200,
    "height": 1200
  },
  "template": {
    "id": "64238d01-d402-474b-8c2d-fbc957e9d290",
    "name": "Ad campaign fall 2022",
    "type": "static",
    "created_at": 1649942114,
    "updated_at": 1649942114,
    "category_name": "Fall campaigns"
  }
}

You can find all layers properties in this section

Sample request

Do not forget to replace {YOUR-API-KEY} and {designId}

cURL

curl -X POST -H "x-api-key:{YOUR-API-KEY}" -H "Content-Type: application/json"  \
-d '{
  "template_format_name": "main-crisp",
  "elements": {
    "image": {
      "image_url": "https://mycompany.com/image.jpeg",
      "fitting_type": "cover",
      "alignment": "middle center"
    },
    "text_title": {
      "payload": "Send best wishes to your lovelies with little easter gifts!",
      "color": "#FFFFFF",
      "font_size": 48,
      "font": "61566327-33c5-11ea-9877-92672c1b8195",
      "font_weight": 700,
      "line_height": 120,
      "alignment": "top left"
    }
  }
}' \
https://api.abyssale.com/banner-builder/{designId}/generate

Javascript

const axios = require('axios');

const payload = {
  "template_format_name": "main-crisp",
  "elements": {
    "image": {
      "image_url": "https://mycompany.com/image.jpeg",
      "fitting_type": "cover",
      "alignment": "middle center"
    },
    "text_title": {
      "payload": "Send best wishes to your lovelies with little easter gifts!",
      "color": "#FFFFFF",
      "font_size": 48,
      "font": "61566327-33c5-11ea-9877-92672c1b8195",
      "font_weight": 700,
      "line_height": 120,
      "alignment": "top left"
    }
  }
}

axios.post("https://api.abyssale.com/banner-builder/{designId}/generate", payload, {
    headers: {"x-api-key": "{YOUR-API-KEY}", "Content-Type": "application/json", "timeout": 30000}
  }).then(response => {
    console.log(response.data)
})

Python

import json
import requests

image_generation_payload = {
  "template_format_name": "main-crisp",
  "elements": {
    "image": {
      "image_url": "https://mycompany.com/image.jpeg",
      "fitting_type": "cover",
      "alignment": "middle center"
    },
    "text_title": {
      "payload": "Send best wishes to your lovelies with little easter gifts!",
      "color": "#FFFFFF",
      "font_size": 48,
      "font": "61566327-33c5-11ea-9877-92672c1b8195",
      "font_weight": 700,
      "line_height": 120,
      "alignment": "top left"
    }
  }
}

r = requests.post("https://api.abyssale.com/banner-builder/{designId}/generate",
  headers={"x-api-key": "YOUR-API-KEY", "Content-Type": "application/json"},
  data=json.dumps(image_generation_payload),
  timeout=30
)
r.json()

Sample response

{
  "id": "5978e8d9-ab34-4735-a2cb-fe95c2c56251",
  "file": {
    "type": "jpeg",
    "url": "https://production-banners.s3.eu-west-1.amazonaws.com/demo/996739f4-b563-428a-a6e8-ec3cb8bd03d4.jpeg",
    "cdn_url": "https://cdn.abyssale.com/demo/996739f4-b563-428a-a6e8-ec3cb8bd03d4.jpeg",
    "filename": "996739f4-b563-428a-a6e8-ec3cb8bd03d4.jpeg"
  },
  "format": {
    "id": "Facebook Feed",
    "width": 1200,
    "height": 628
  },
  "template": {
    "id": "46d22c62-d134-44d3-a040-138e4ea9ea08",
    "name": "Abyssale demo - FB Feed",
    "created_at": 1602256303,
    "updated_at": 1602685407
  }
}

What are the 2 image URLs?

As you can see in the sample response, 2 image urls are returned:

• A link (the url property) pointing directly to the Abyssale object storage service (S3).

  • Example: https://production-banners.s3.eu-west-1.amazonaws.com/demo/996739f4-b563-428a-a6e8-ec3cb8bd03d4.jpeg

  • Hotlinking is allowed (a fair usage policy applies) but is not recommended as those URLs are not designed to have low latency and high transfer speeds features.

• A CDN link (the cdn_url property):

  • Example (not reachable): https://cdn.abyssale.com/demo/996739f4-b563-428a-a6e8-ec3cb8bd03d4.jpeg

  • Those URL are designed for high-speed & low-latency performance. A limited bandwidth applies to all plans (see the pricing table).

Progress your design generation journey by diving deeper into configuration

• Generate single image
