Generate Multi-Page PDF for Printing ​

Asynchronously generate a single multi-page print-ready PDF from a printer_multipage design. Each set of element values you provide becomes one page in the output document — useful for catalogues, brochures, and personalised booklets where every page shares the same template but has different content.

The result is one PDF file, delivered as a direct link. When generation completes, a NEW_BANNER_BATCH event is sent to your callback_url carrying a banners array with a single entry, whose file.url is the PDF. It is not a ZIP — a ZIP is only ever produced for HTML5 banners.

A printer_multipage design has pages, not formats, so it always produces exactly one document; there is no per-page or per-format variant of this call. Generate Multi-Format PDFs is the equivalent for a printer design, where each of the design's formats produces its own PDF.

Plan requirement

This feature is available from the Suite plan.

Colors accept hex or CMYK

Colors you override at generation time — root.background_color and element *_color fields — accept both hex (#RRGGBB / #RRGGBBAA) and CMYK (cmyk(C,M,Y,K) / cmyka(C,M,Y,K,A)) tokens on print designs. The backend converts them to the design's color profile at render time. (Print imports store CMYK too, converting a solid hex for you — see Print Imports → Colors.)

Endpoint ​

POST/async/banner-builder/{designId}/generate-multipage-pdfAPI Reference

Generation characteristics ​

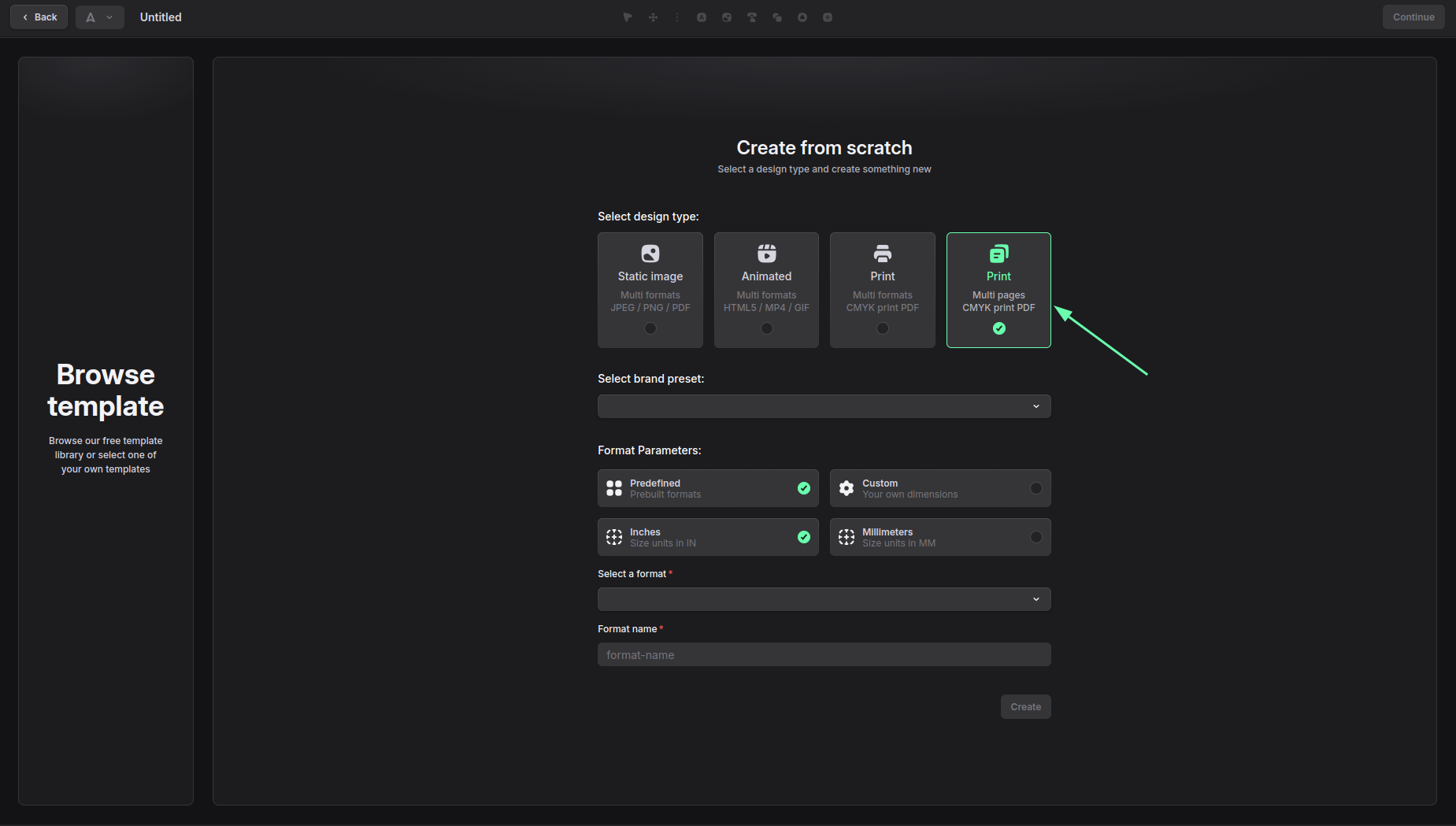

printer_multipage design type

  • Supported Design Type: printer_multipage
  • Response: Asynchronous
  • Output: Multi-page printable PDF
  • Retrieval methods: Webhooks, Polling

Request body ​

There is no top-level elements field on this endpoint — a multi-page design's overrides are per page, inside pages. image_file_type and file_compression_level are not accepted either: the output is always one PDF.

FieldTypeRequiredDescription
pagesobjectYesDictionary of page overrides keyed by page name (e.g. page_1, page_2). Each value is a dictionary of element overrides for that page.
callback_urlstring (uri)NoURL that will receive a POST request when generation completes.
original_visual_idstring (uuid)NoRegenerate an existing multi-page visual in place — see Visual Versioning.
printobjectNoPrint output options. Fields: color_profile (UUID), display_crop_marks (boolean — default: value configured in the builder).

Output customization ​

Use the print property to customize the PDF output.

Color profiles ​

UUIDDescription
be2ab219-8fe4-4d85-91ba-65bdc9ddaf01CMYK — ISO Coated v2 (ECI)
03738f37-5b6f-4be9-9100-706b1711f9ddCMYK — ISO Coated v2 (ECI) 300%
e0c86a8a-050c-41f1-885a-0f74b9baac50CMYK — ISO Uncoated
0e0355e6-2931-4c83-92f2-64db9f5ddffcCMYK — US Web Coated (SWOP 2006 5v2)
db3c123e-1127-11ef-b77e-f93002785645RGB — No color profile
fac91df8-1155-11ef-b77e-f93002785645CMYK — ISO Newspaper26 v4

The color_profile value must be a UUID — the built-ins above, or a custom profile from your workspace.

json
{
  "print": {
    "display_crop_marks": true,
    "color_profile": "e0c86a8a-050c-41f1-885a-0f74b9baac50"
  }
}

Sample request ​

For multi-page designs, provide elements per page using the pages object.

Replace {YOUR-API-KEY} and {designId} before running.

bash
curl -X POST \
  -H "x-api-key: {YOUR-API-KEY}" \
  -H "Content-Type: application/json" \
  -d '{
    "pages": {
      "page_1": {
        "root": { "background_color": "cmyka(0,0,0,0,100)" },
        "tb-image_0": { "image_url": "https://mycompany.com/image.jpeg" },
        "tb-text_0": { "payload": "Lorem Ipsum" }
      },
      "page_2": {
        "root": { "background_color": "cmyka(0,0,0,0,100)" },
        "tb-image_0": { "image_url": "https://mycompany.com/image.jpeg" },
        "tb-text_0": { "payload": "Lorem Ipsum" },
        "tb-text_1": { "payload": "Lorem Ipsum" }
      }
    }
  }' \
  https://api.abyssale.com/async/banner-builder/{designId}/generate-multipage-pdf

Sample response ​

json
{ "generation_request_id": "166e1852-dc97-43e3-a5f2-142076452c74" }
